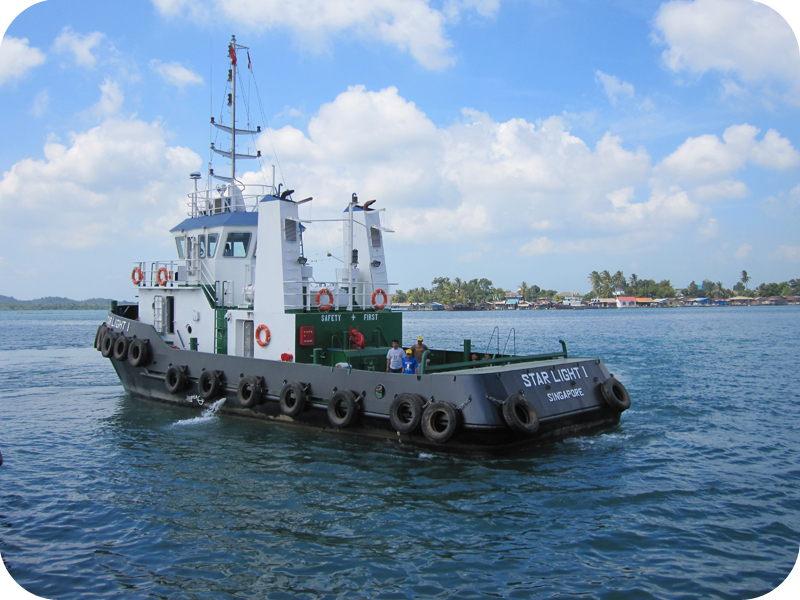

1,200Bhp Tugboat

1,200Bhp Tugboat

Dimension: 23.5m x 7.32m x 3.1m

Year built: 2012

Class: Nippon Kaiji Kyokai (NKK)

Engine: 2 x YANMAR 6AYM-STE 659bhp

Horsepower: 1,200Bhp

Location: Batam Shipyard

Price: Please contact us

Detailed Specifications:

Propulsion System

    Main Engine: 2 x YANMAR 6AYM-STE 659bhp @ 1900rpm each
    Gear Box: MAISSON W3300 Ratio 6.556:1
    Generator: 2 x 28KW
    Propeller: 2 x 4 blade manganese bronze
    Speed: 12 knots
    Steering Gear: 1 unit 1.5 tons electro Hydraulic

Tank Capabilities

    Fresh Water: 17.00m3 approx
    Fuel Oil: 91.00m3 approx

Pumps

    GS and Fire pump: 2 x capacity 30m3/hr
    Bilge & Ballast pump: 2 x capacity 30m3/hr
    FW pressure pump: 1 x 18 gal/min
    SW pressure pump: 1 x 18gal/min
    Oily water separator: 1 x 0.25m3 per hour

Deck Equipment

    Anchor Windlass: 17.5mm c/w double gypsy & drum
    Anchor: 2 x 360kg stockless bower anchor
    Towing Hook: 1 unit 15tons SWL
    Chain Cable: 247.50m x 17.50mm dia, grade II stud link cable

Life Saving Equipment

    Life Raft: 1 x 10 men inflatable life raft
    Life Buoy: 8 x 30” Solas approved life buoy
    Life Jacket: 14 units c/w light and whistle

Fire Fighting Equipment

    Fire Hose: 3 sets 1.5” x 15m c/w nozzles
    Fireman Outfit: 1 complete set
    Extinguishers: 7 sets 9 litres ABC extinguishers, 1 set 45 litres foam extinguisher

Radio & Navigation Equipment

    Radar: TBC
    SSB Radio: Model 1503 or equal
    VHF: TBC
    Echo Sounder: TBC
    GPS: TBC
    Magnetic Compass: TBC
    EPIRB: TBC

Accommodation

    Officer: 2 x built-in berth
    Crew: 5 x 2 tier berth



Status: Available
